En la era digital, El modulador HEMI RF es un dispositivo electrónico indispensable no solo para los hogares sino también para los sitios públicos.. Entonces en este texto, we will offer an integrated guide on how to purchase an HDMI RF modulator, including its definition, ventajas, purchase considerations, and five recommended modulator designs.
Can You Convert HDMI to RF?
primero, prepare an AV line and a coaxial cable signal line. Segundo, insert one end of the AV line into the AV input port of the converter, and then connect the other end to the AV output port of the set-top box. Tercero, the coaxial TV signal cable should be inserted into the RF input port of the TV and the RF output port of the converter.
What Is HDMI RF Modulator?
HDMI radio frequency modulator is a processor for converting the video and audio signals of high-definition HDMI to digital signals. Carrying with a professional RF converting technique, it transports the multi-channel radio frequency signal through a coaxial cable. The receiver restore the radio frequency signal to high-definition audio and video signal which can be displayed by the TV.
It can be applied in various situations. Such as
- Security monitoring system
- Multimedia information publishing system
- Digital signage HD transmission
- Home cable TV system
- HD video conferencing system
- Train vehicle and platform HD video transmission
- Bus station passenger information display system
- Airport multimedia information release system
- Supermarket and store HD advertising system
Is An RF Modulator The Same as A Digital Converter?
They are not the same in working principle and application.
A digital converter is an electronic device for converting one form of digital data into another. Por ejemplo, a digital converter can convert an analog signal to a digital signal, or reversely a digital signal to an analog signal. Es decir,a converter box demodulate a signal but also is capable of decoding any encrypted data in the signal. The device is commonly applied to computers, communication system, control system and measurement system.
A diferencia de, RF modulator is used for modulating a certain frequency with an injected video or audio signal.
Benefits of Using An HDMI RF Modulator
HD Transmission
HDMI signal transmitters support HD resolution and multiple audio formats, such as Dolby Digital and DTS. It offers clear and realistic audio-visual experience to users.
Long-distance Transmission
HDMI signal transmitters extend the transmission distance of HDMI signals, allowing users to use high-definition devices in different rooms.
Stable Transmission
The HDMI signal transmitter ensures the stable transmission of the signal and avoid signal interruption or distortion, so users would have a smooth, stay-free high-definition audio-visual entertainment experience.
Multi-device Connection
HDMI signal transmitters can connect multiple devices at the same time, giving users the freedom to use different devices without limitation.
Factors to Consider When Choosing An HDMI RF Modulator
When choosing an HDMI cable transmitter, the first thing you need to determine is how long the transmission distance. Generalmente hablando, the HDMI cable transmitter signal can reach above 70-100 meters long through a single CAT5E/CAT6/CAT7 cable. If your required distance is only 50 metros, you can choose the type with 70-meter transmission long.
Adicionalmente, it is necessary to check whether the HDMI cable transmitter supports the required high-definition format. Por ejemplo, the device with transmission distance of 100 meters supports 1080P resolution ratio, while the device with 70-meter transmission 4K60 resolution ratio.
The Best HDMI RF Modulators Design in 2024

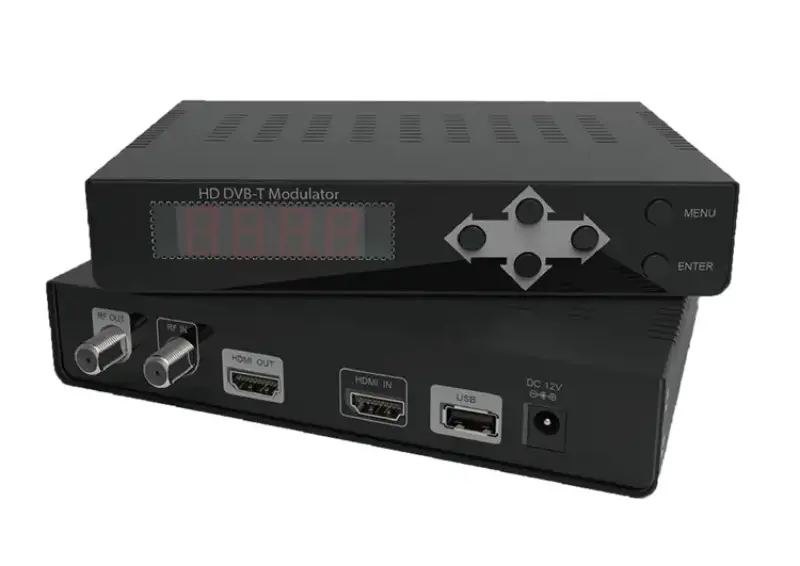

1. DVB-T Modulator
| Nombre | 1 CH Full HD DVB-T Modulator |
| Rf input/output Connector | Female TYPE-F |
| Rf input/output Impedance | 75 ohmios |
| HDMI input/output Connector | HDMI JACK |
| HDMI input/output Compatible format | Auto /480I/ 480P /576I /576P/720P/1080I/1080P |
| Supply Voltage | AC100V~240V 50Hz/ 60Hz |
| OUTPUT | DC12V/1A |
| Power Consumption Max | 10W Max in AC input |
| USB2.0 Connector | USB2.0 JACK |

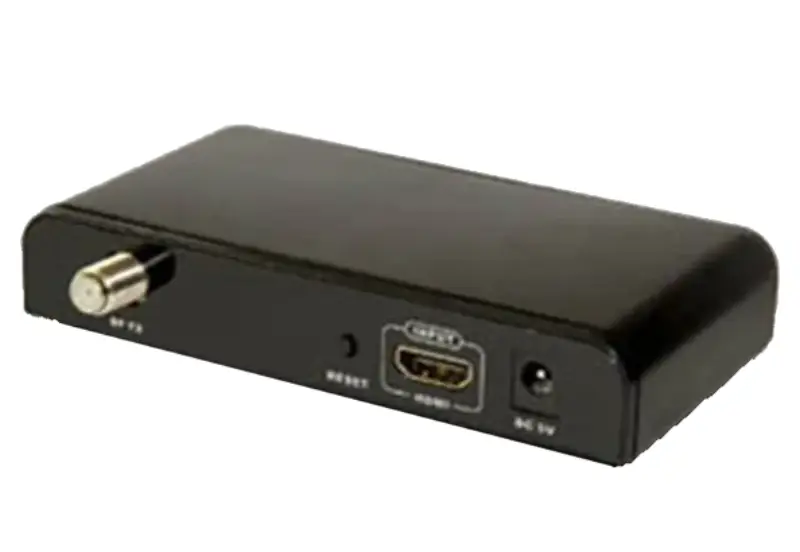

2. 700m HDMI to RF Coaxial Modulator
| Nombre | 700m HDMI to RF Coaxial Modulator |
| VIDEO ENDODING | H.264 |
| Audio encoding | MPEG2 |
| Coaxial cable | RG6,RG7,RG11 etc |
| Frequency point: | 100-1000METRO |
| RF connector | Imperial system (75Ω Type F) |
| Support HDMI Graphics resolution | Up to 1920×1080@60HZ |
| Effective bit rate | Max 31.9M bits |
| Pérdida de inserción | <2dBm |
| RF TX output Consumption | +0dBm |

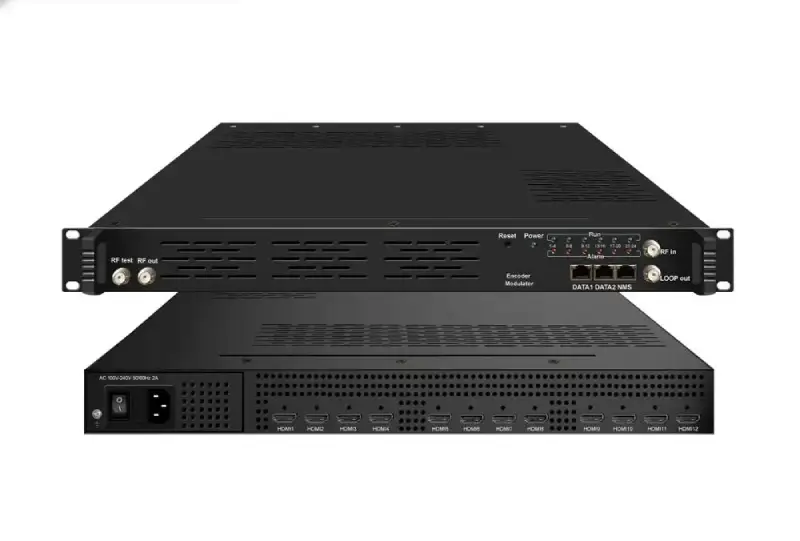

3. Twelve Channels HDMI RF Modulator
| Nombre | Twelve Channels HDMI RF Modulator |
| Aporte | 8/12 HDMI, IP input, 1dvb-c tuner for option |
| video | mpeg4/h.264 |
| producción | IP, ASI for option |
| BISS | De-scrambling |
| Tipo | CATV encoder modulator |

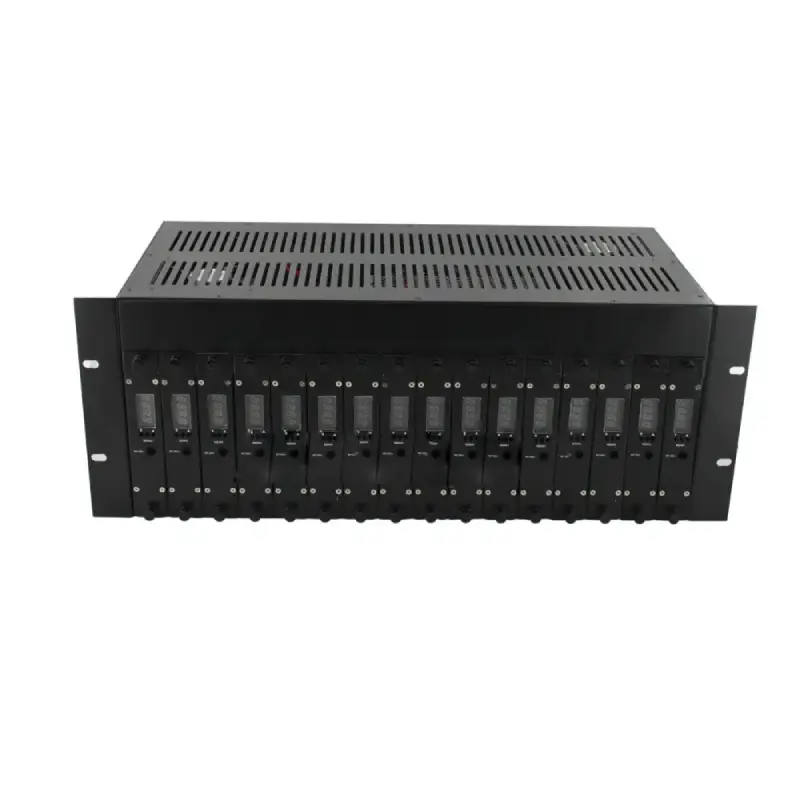

4. Sixteen Channels HDMI RF Modulator
| Nombre | Sixteen Channels HDMI RF Modulator |
| Aporte | 16 HDMI or 16 AV |
| Output | RF Output |
| HDMI Video encoding | H.264 |
| AV Video encoding | MPEG2 |
| output level | output level |
| Resolución | Max 1920*1080 30PAG |
| Bit Rate | 2-19.5Mbps |
| Constellation | 64QAM |
| Output Frequency Range | 45-860megahercio, 0.1MHz Step |
| Power | DC 5V/ 1A |

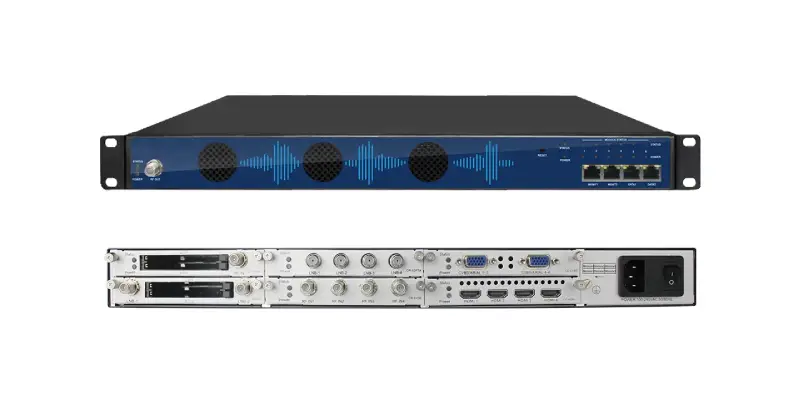

5. Twenty-four Channels HDMI RF Modulator
| Nombre | Twenty-four Channels HDMI RF Modulator |
| Gestión | Web-based NMS |
| Dual Power Supply | support |
| Hot-swappable Slots | 6 |
| RJ45 Port | 4xGigabit |
| Aporte | HDMI TSIP |
| IP Output | 128 I/O SPTS/MPTS UDP/RTP |
| Video Codec | HEVC/H.265 H.264 |
| Audio Codec | AAC AC3 MPEG1L2 |
| Modulation | QAM/OFDM/ISDB-T/8VSB |
Llevar
If you want more buyer’s instruction or want to customize a batch of HDMI RF modulator in any design, Por favor, siéntase libre de Contáctenos.
